Description

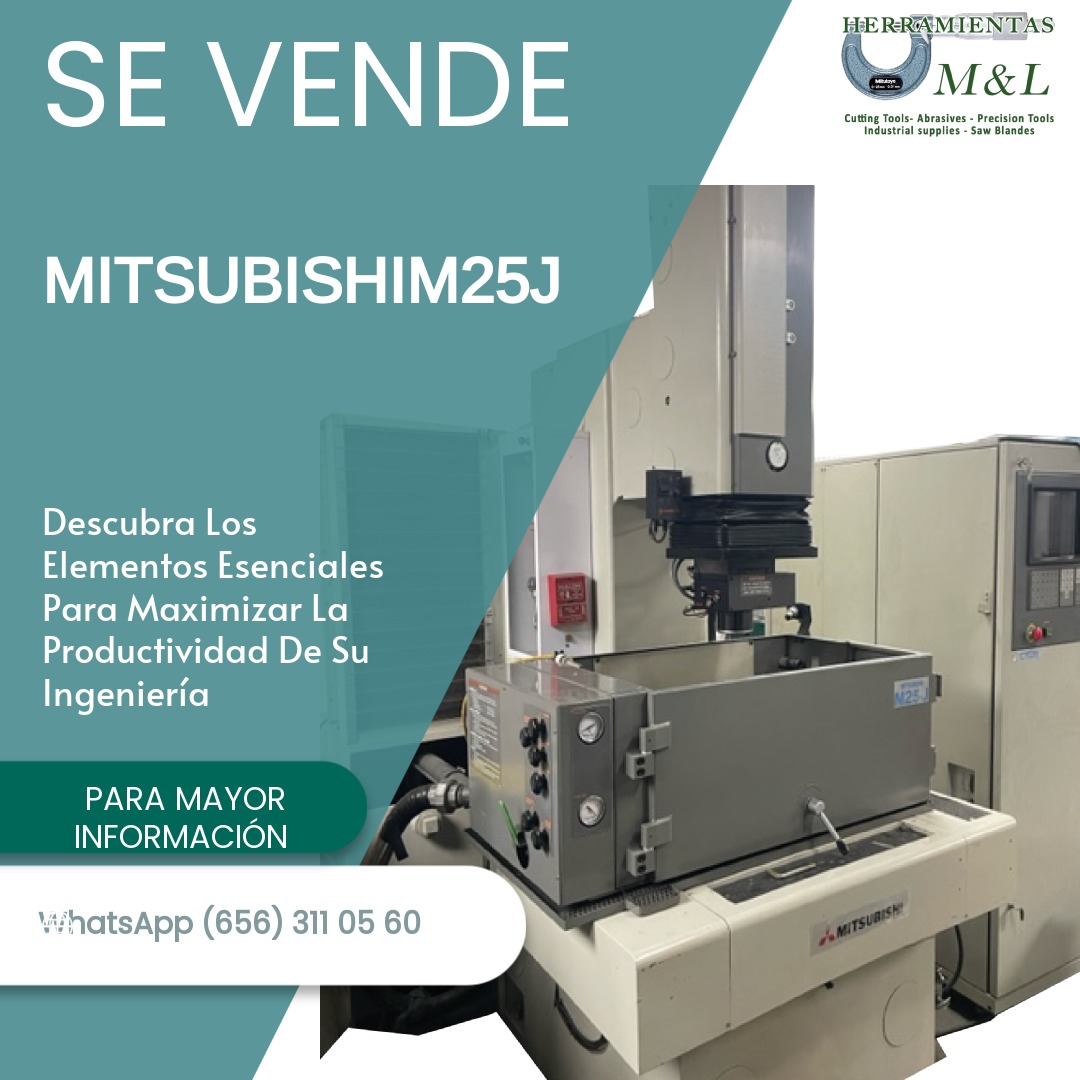

Mitsubishi M25J CNC Electrical Discharge Machine (EDM), Sinker Type, C-Axis, 16 Position ATC
Mitsubishi CNC Control and Power Supply,
Electrics:
220 Volt, 3 Phase
Manufacturer: Mitsubishi Model: M25J Year: 2000
Main Unit Approx Weight: 4400.00 lbs
Main Unit Dimensions (in inches): Length: 45.00″ Width: 55.00″ Height: 107.00″
Components:
Dielectric System: Length: 42.00″ Width: 36.00″ Height: 72.00″
Transformer: Length: 21.00″ Width: 24.00″ Height: 24.00″
Control & Power Supply: Length: 29.00″ Width: 48.00″ Height: 71.00″
Specs:
Control: Mitsubishi CNC Control
Tank Size: 28″ x 18″ x 12″
Travels (X/Y/Z): 9.84″ x 7.87″ x 9.84″
Table Size: 19.25″ x 13.5″
Generator Output: 35 Amps
Max Table Load: 550 Lbs.
Spindle C-Axis Positioning: Full C-Axis Programmable
Tool Changer Capacity: 16 Stations
Spindle / Head Tooling Type: System 3R 20mm
Max Electrode Weight: 66 Lbs.
